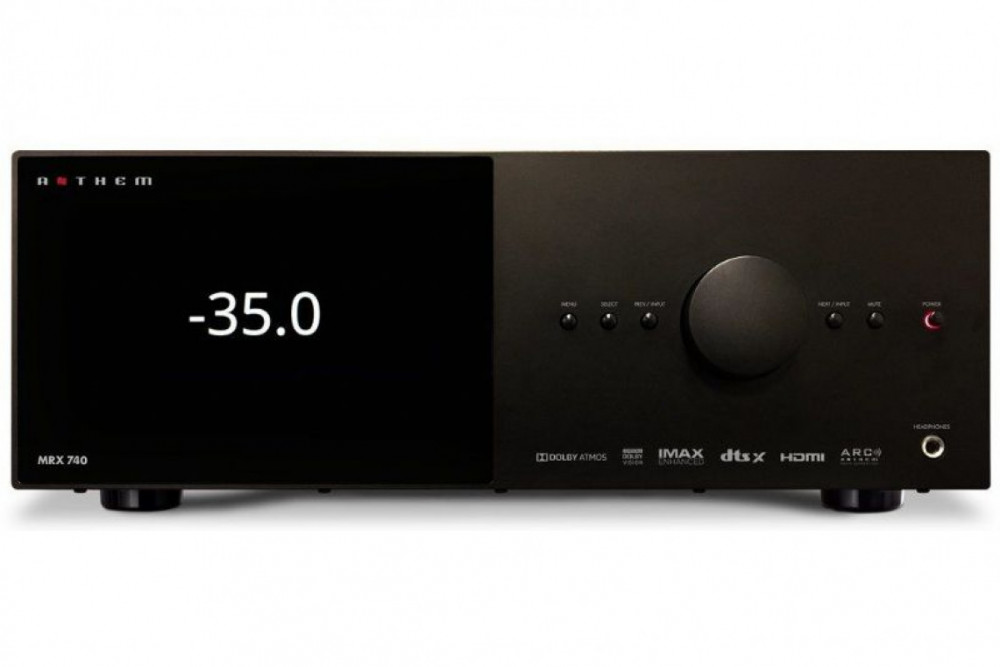

Anthem AV MRX 740
Innehållet kan inte visas
Anthem MRX 740 hos Lefflers Ljud & Bildupplevelser i Norrköping
7.2 kanals receiver med 11.2 kanaler preout. Dolby atmos, DTS:X och IMAX Enhanced. 140Watt per kanal i 8 Ohm. HDMI 2.0b, HDCP 2.2. eARC. Webbaserat gränssnitt för inställningar och mappning av utgångar. (mycket inställningar!) Airplay2, chromecast, Bluetooth, Spotify och Roon. ARC inkluderat och HDMI v2.1 8k uppgraderingsbart.
ANTHEM – PURE PERFORMANCE, PURE VALUE
Anthem’s MRX A/V Receivers are about maximizing performance for the money. Building on the feature set of our previous models, we’ve added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.
The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 HDMI inputs and 2 outputs, plus eARC. Ultra HD signals are passed through unaltered up to 18.2 Gbps with Dolby Vision, HDR and Hybrid Log Gamma support.
INTRODUCING ANTHEM WEB USER INTERFACE
Anthem Web User Interface is now built in to all MRX Receivers and AVM Processors. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the main or second zone on and off, adjust volume, change audio modes or tweak channel trims for a perfect surround sound experience. Web UI can also be used to calibrate speaker delays and levels and configure network settings/control options. Source devices can be renamed, simplifying set up by enabling the elimination of unused inputs. Installers can import and export files to make remote management simple and convenient.
Channel Re-Assignment
MRX Series Receiver channels can be assigned in many ways. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).
Configure amplifier channels for your system's needs, then perfect the presentation with ARC Genesis.
Robust Integration
The Anthem MRX 740 features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices
NEW! ARC Genesis Software
ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.
ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.
THE ANTHEM ADVANTAGE
Backed by over 35 years of home-grown,hands-on design, and innovative audio engineering experience, Anthem products provide an unprecedented level of reliability and functionality; delivering one of the industry’s highest performance/price ratios. This is just one reason why Anthem electronics are the choice of knowledgeable audiophiles, professional musicians and engineers the world over.
MRX 740 Specifications
PREAMPLIFIER
Maximum Output (<0.1% THD) 5.2 VRMS, 7.1VRMS
Frequency Response 20Hz - 30KHz +/-0.2dB
Frequency Response, Analog-Direct N/A
THD+N (2 Vrms output) -100 dB
S/N Ratio (2 Vrms output, IEC-A filter) 110 dB
PREAMPLIFIER + AMPLIFIER (1 W OUTPUT)
MRX 1140 / MRX 740 SNR: 91 dB ch 1-5, 86dB others
MRX 540 SNR: 91 dB ch 1-5
SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.
MAXIMUM CONTINUOUS OUTPUT (1% THD)
MRX 1140 MRX 740 MRX 540
Channels 1-5, Two Driven into 8 Ohms 140 W 140 W 100 W
Channels 1-5, Two Driven into 6 Ohms 170 W 170 W 130 W
Remaining Channels, Two Driven into 8 Ohms 60 W 60 W n/a
Remaining Channels, Two Driven into 6 Ohms 75 W 75 W n/a
POWER CONSUMPTION
MRX 1140 MRX 740 MRX 540
Typical Load 570 W 485 W 365 W
Standby 0.3 W 0.3 W 0.3 W
Standby IP Control Enabled 1.8 W 1.8 W 1.8 W
Standby HDMI Bypass Enabled 4.9 W 4.9 W 4.9 W
DIMENSIONS
Height (without feet) 6" (15.24 cm)
Height with Rackmount Kit 4U
Width 17" (43.18 cm)
Depth (including wifi ant not power cord) 14-1/2" (36.4 cm)
WEIGHT
MRX 1140 33.6 lb (15.2 Kg)
MRX 740 33.2 lb (15.1 Kg)
MRX 540 28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
