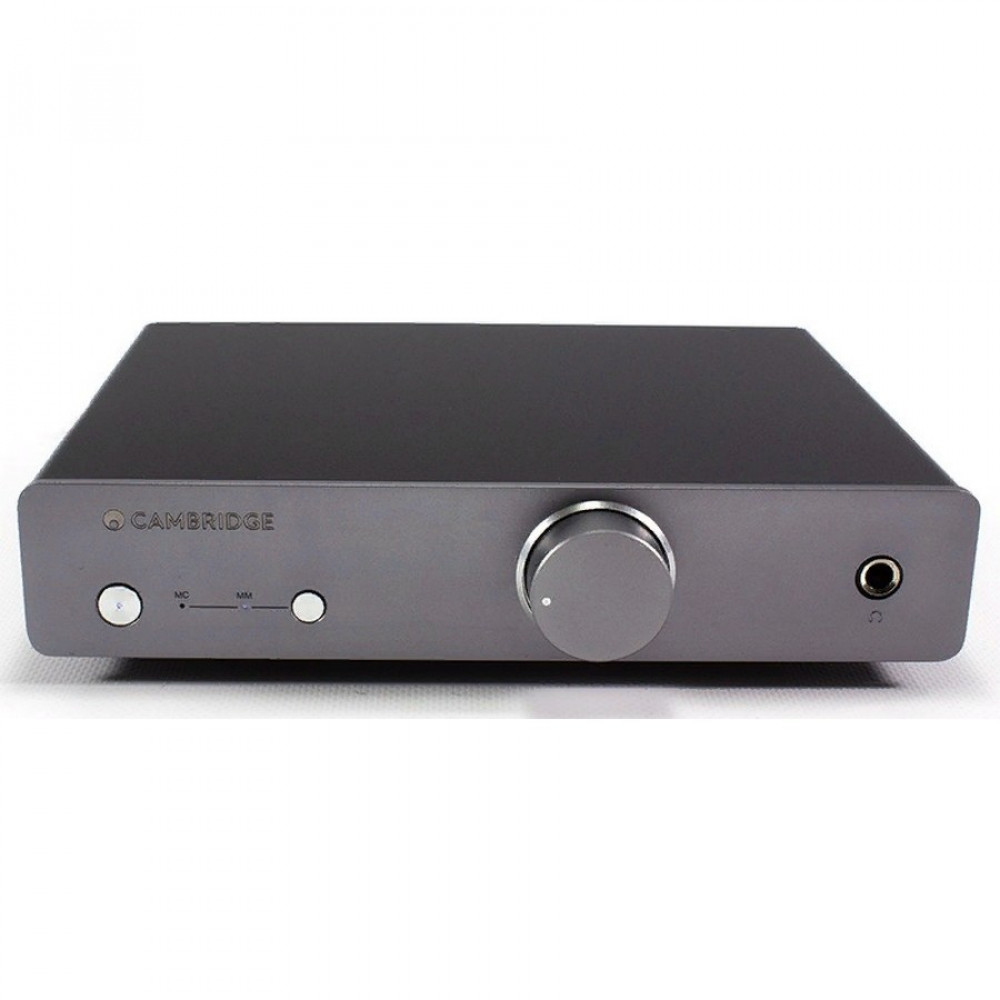

Cambridge Audio ALVA Duo
Cambridge Alva Duo hos Lefflers Ljud & Bildupplevelser i Norrköping
Högkvalitativt RIAA med MM/MC möjlighet
Hörlursuttag samt även balansjustering finns.
Alva Duo - Moving Coil & Moving Magnet Phono PreampSqueeze every inch of detail from your record collection with our highest quality moving magnet and moving coil phono stage, with integrated headphone amp; the Duo Phono Preamplifier.The details:MAX POWER CONSUMPTION10W
CARTRIDGE SUPPORTMoving Magnet | Moving Coil
GAIN @ 1KHZMM: 39dB | MC: 60dB
NOMINAL OUTPUT300mV
SENSITIVITY FOR NOMINAL OUTPUTMM: 3.35mV | MC: 305uV
EQUIVALENT INPUT NOISE (A-WEIGHTED)MM: ~0.09uV | MC: ~0.08uV
RIAA CURVE ACCURACY+/- 0.3dB 30Hz-50Hz
SIGNAL TO NOISE RATIO GROUNDED INPUTS REF. 1V OUTPUT (20HZ-20KHZ BW)MM: >90dB | MC: >70dB
THD+N 1KHZ (20-20KHZ BW)MM: <0.0025% | MC: <0.20%
< p="">input="" impedancemm:="" 47k="" ohms="" |="" mc:="" 100="" ohms
input="" capacitance100pf
overload="" margin="">30dB
CROSSTALK @ 10KHZMM: >85dB | MC: 75dB
DIMENSIONS (H X W X D)48 x 215 x 159 mm (1.9 x 8.5 x 6.2")
WEIGHT0.95kg (2.1lbs)
WHATS IN THE BOX?Alva Duo Moving Coil & Moving Magnet Phono Preamp, User Manual, Safety Guide, Mains Lead
Why Choose a Dedicated Phono Preamplifier?
Due to the low-level signals created by a turntable, not all hi-fi amplifiers will let you connect directly to a record player. The phono preamplifier boosts this signal to something a power amplifier can work with. The challenge at this stage though is that noise can easily be added.
This is why we’ve designed the Duo around exceptional components that deliver the warm and detailed sound that’s synonymous with vinyl, all without distorting the signal from your moving magnet cartridge turntable. The switch mode power supply improves performance by switching outside of audible frequency to drastically reduce hum and new circuit board layout uses surface-mount components to reduce noise.
Eco Friendly
The Duo phono preamplifier is green at heart with less than half a watt standby power consumption and auto power down feature if the unit isn’t used after a 20 minute period. This in turn gives the unit the same worldwide voltage for compatibility wherever you are in the world.
<>
Modell
ALVA DuoVarumärke
