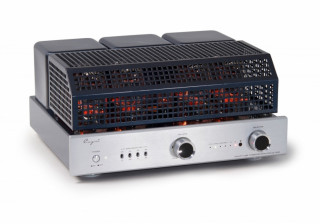

Cayin CS-100A EL34

Cayin CS-100A EL34 hos Lefflers Ljud & Bildupplevelser i Norrköping

The new dual-mode Cayin Audio CS-100A tube amplifier is rated at 80 watts per channel in Class AB Ultra-linear mode and 50-watts per channel in triode mode. With an on-board bias meter, the integrated amplifier can run either KT-88 or EL family tubes and uses silver internal wiring. The CS-100A incorporates a 6SN7 tube for voltage amplification, 12AU7EH for phase inversion/voltage amplification and 12BH7EH for voltage amplification and driver stages, with KT-88 or EL-34 output valves. Soft-Start circuitry protects the amplifier and extends the life of internal components and tubes. A high grade Alps volume control, audio-grade capacitors, carbon film resistors, toroidal transformer for power supply and wide-bandwidth EI output transformers are all standard.

SPECIFICATION
Model CS-100A
Power Output
50W+50W (Triode)
80W+80W (Ultra-linear)
Frequency Response
8Hz～75kHz (-3dB)
THD
1%(1kHz)
Power Supply
Custom made Torroidal
Power Consumption
<480w

S/N Ratio
92dB
Input Sensitivity
450mV (Integrated)1300mV (Pre-In)
Dimension
420 × 200 × 394 mm(W×D×H)
Net Weight
30kg
Output Impedance
4Ω，8Ω
Input Impedance
100KΩ
Tube
1 x 6SN7, 2 x 12BH7EH, 2 x 12AU7EH, 8 x EL34
Input Terminals
Line 1, Line 2, Line 3, Pre-In
