Cayin CS 55A

Cayin CS 55 A EL34 hos Lefflers Ljud & Bildupplevelser i Norrköping

OBS säljes med EL34 rör.

Cs-55A fjärr, mätare för bias justering, usb in dac 32/384, phono MM steg,
hörlursuttag.
Lev med EL-34 rör men valbart att byta till KT-88
Switch på baksida.

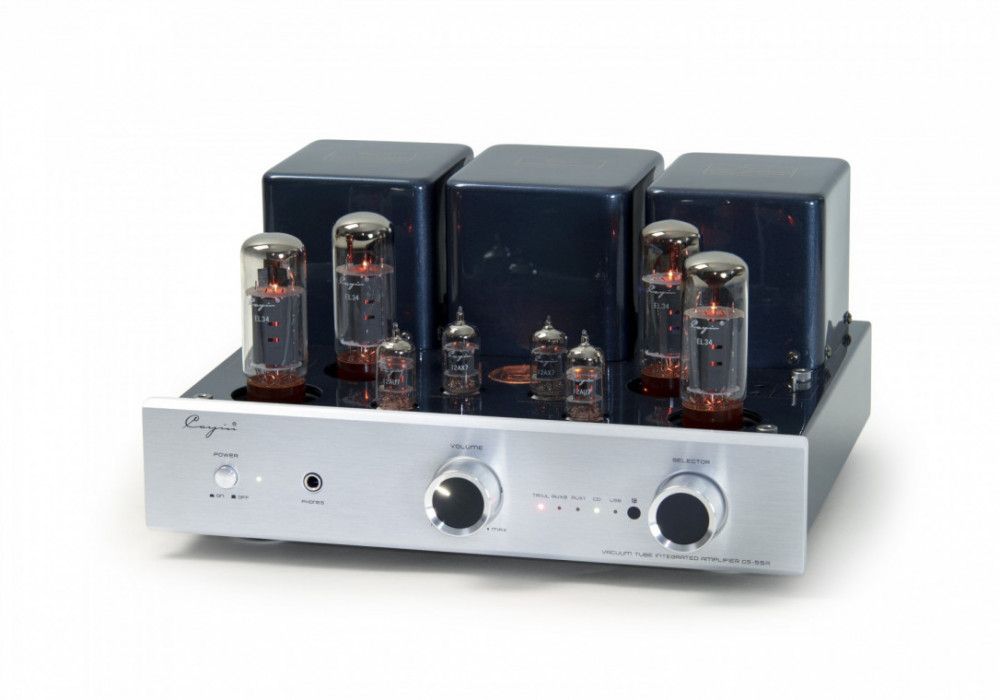

The CS-55A is the most recent advancement in tube amplifier technology created by Cayin. This state-of-the-art machine boasts forty watts per channel by using 4 KT88 tubes in Class AB ultra-linear push pull amplification. The CS-55A consists of four pairs of input: one Phono, a USB port, and two line inputs giving a wide range of options for any listener.
The CS-55A comprises of a fully anodized aluminum front, a vented chassis with a gorgeous finish, the finest hand-made point-to-point wiring, and a soft-start circuit to enhance the life of the toroidal power transformer and output transformers. Combined with audio grade capacitors, carbon film resistors, and ceramic tube sockets, this is one amplifier every audiophile should have in his/her collection. Speaker output impedance can be swapped between 4 ohms and 8 ohms. Similarly to the A-88T, the CS-55A comes with a handy remote control.
Transform your music system! Extraordinary value and performance best describes the Cayin Audio CS55A Integrated amplifier. As the centre piece of any system, the unit is at home with both analogue or digital formats. CS-55A includes a built in MM phono section to accommodate turntables and a built-in high resolution DAC for use with computers. Via the 2.0 USB input, the DAC is capable of covering digital audio signals up to 32bit | 384kHz. This combination of a high end DAC and tubes makes for a rich and detailed soundstage.
The output stage can be switched between Triode and Ultra Linear mode and either KT88 or EL34 tubes can be used for the maximum amount of flexibility. A headphone jack on the front completes the unit and makes this one of the most versatile and compelling pr

SPECIFICATION
Model
CS-55A
Power Output
KT88: 22W Triode – 40W UltralinearEL34: 20W Triode – 38W Ultralinear
Frequency Response
KT88: 5Hz – 44kHz (-3dB)EL34: 5Hz - 48kHz (-3dB)
Input Terminal
USB, CD, Phono, Aux
Power Consumption
<270w

S/N Ratio 92dB

Input Sensitivy VEL34: 280mV
Dimension 360mm × 334mm × 180mm
Net Weight 17kg
Output Impedance 4Ω，8Ω
Input Impedance 100KΩ
Tube
KT88: 4 x KT88, 2 x 12AU7/ECC82, 2 x 12AX7/ECC83EL34: 4 x EL34, 2 x 12AU7/ECC82, 2 x 12AX7/ECC83
USB DAC
Word length
16 - 32bits
Sampling rate
44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz,352.8kHz,384kHz
Operating System
Windows XP®, Windows Vista®，Windows 7® , Windows 8®, Mac OS(10.6.3 and above)
Compatible with Audio Class 1.0 and Audio Class 2.0
Phono
Input Sensitivity 3mV Input
Impedance 47kΩ
RIAA Errors Lower than ±0.25dB
Total Gain 40dB
S/N ratio 68dB
