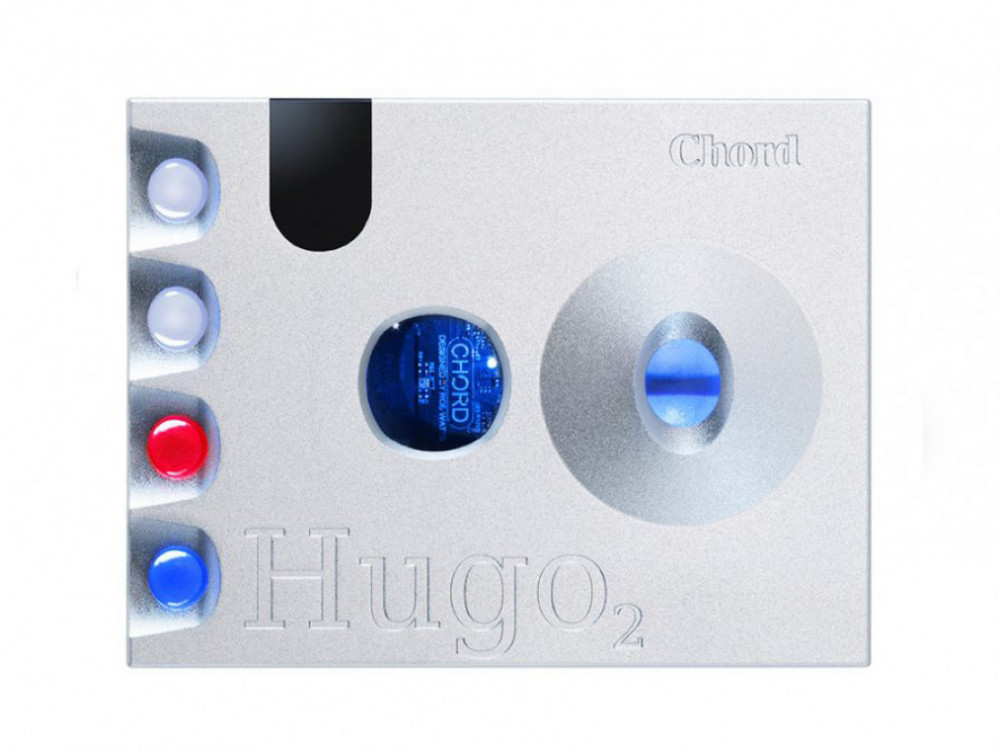

Chord Electronics Hugo2

Under 2014 introducerade vi Hugo, en revolutionerande bärbar DAC och hörlurarförstärkare som blev en
landmärkeprodukt i ljudlandskapet. Framsteg inom digital teknik, inklusive de senaste FPGA och WTAfilmen
(Watts Transient Aligned), har gjort det möjligt för oss att introducera en nästa generationsversion,
Hugo 2, med flexibla nya funktioner, plus nästa generations tekniska och ljudprestanda.
Enheten erbjuder fyra digitala ingångar (optisk, koaxial och HD-USB) plus Bluetooth med bred upplösning,
med uppspelning med hög upplösning upp till 768 kHz och upp till DSD512 (Octa DSD) via sin HD USBingång.
Analoga utgångar inkluderar 2x RCA, plus 3,5 mm och 6,35 mm hörlursutgångar

HUGO 2 – SPECIFICATIONS:
Materials: Clamshell precision machined aluminium casing with polycarbonate buttons, acrylic signal window, and glass viewing portal. Available in a choice of two colours – natural silver, and satin black
Battery: 2x Rechargeable custom Enix Energies 3.7v 9.6Wh Li-ion (lithium-ion (2600mAh) batteries*
Tap length filter: 49,152 – 10 element Pulse Array design
Play time: In excess of seven (7) hours
Charging: Nominal four (4) hours via Micro USB at 1.8amps (fast charge) – Nominal eight (8) hours at 1amp (slow charge)
Connectivity (input): Micro USB (White): 44.1kHz – 768kHz – 16bit – 32bit
Coax via 3.5mm Jack (Red): 44.1kHz – 768kHz – 16bit – 32bit
Optical (Green): 44.1kHz – 192kHz – 16bit – 24bit
Connectivity (input wireless): Bluetooth (Apt X) (Blue): 44.1kHz – 48kHz – 16bit
Connectivity (output): 1x ¼” jack headphone output
1x 3.5mm jack headphone output
1x stereo (L & R) RCA output
PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz.
DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)
Volume control: Digital, activated in 1dB increments. Last known state saved upon shutdown, with exception of line-level mode
Line-level mode: Activated via dual press of middle ‘Source’ and ‘Crossfeed’ buttons. Line level = 3v via all outputs. Reset by power cycle
Power saving mode: Auto-shutdown after ten minutes of input inactivity
Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS

Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
Tap-length: 49,152
Pulse array: 10 element pulse array design
Frequency response: 20Hz – 20kHz +/- 0.2dB
Output stage: Class A
Output impedance: 0.025Ω
THD: <0.0001% 1kHz 3v RMS 300Ω

THD and noise at 3v RMS: 120dB at 1kHz 300ohms ‘A’ wighted (reference 5.3v)
Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
Signal to noise ratio: 126dB ‘A’ Weighted
Channel separation: 135dB at 1kHz 300Ω
Power output @ 1kHz 1% THD: 94mW 300Ω
740mW 32Ω
1050mW 8Ω
Weight: 450g
Dimensions: 130mm (L) x 100mm (W) x 21mm (H)
Boxed Dimensions: 220mm (L) x 122mm (W) x 85mm (H)
