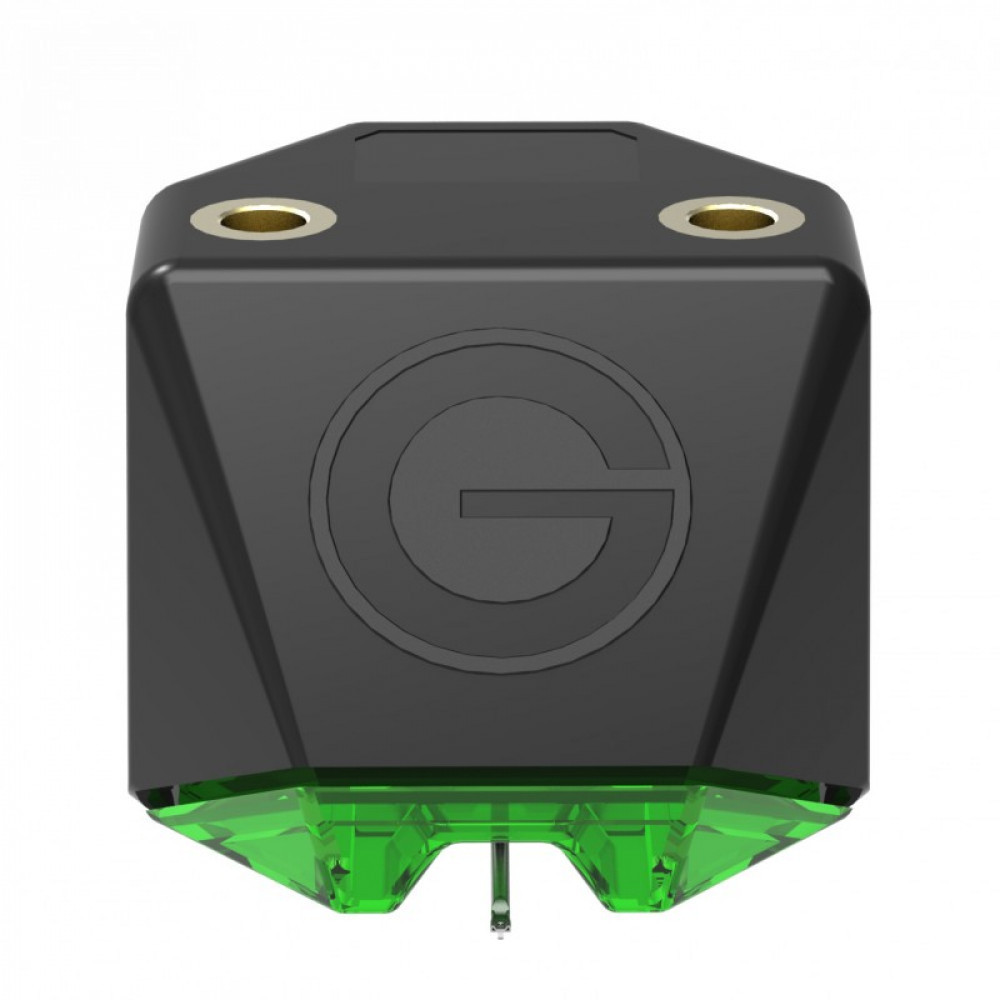

Goldring E2

The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment.
The E2 cartridge, the middle in the range, features the same spherical stylus profile as the E1 but with the additional benefit of an upgraded aluminium cantilever. This is both stiff and light weight allowing the stylus to more accurately trace medium to high frequencies offering more detail and reducing distortion and mis-tracking during loud passages.

Specifications
Model Variations
Colour Green
Cantilever Aluminium
Stylus profile Spherical
Stylus radius 0.6 mil
Transducer Characteristics
Frequency range 20 Hz - 20 kHz
Channel balance 1.5 dB at 1 kHz
Channel separation >20 dB at 1 kHz
Sensitivity 3.5 mV (1 kHz @ 5 cm/sec)
Static compliance 20 mm/N
Vertical tracking angle 208
Electrical Characteristics
Load resistance 47 kOhm
Load capacitance 100 - 200 pF
Internal inductance 400 mH
Internal resistance 410 Ohm
Mechanical Characteristics
Cartridge mass 6.9 g
Fixing centres 12.7 mm (0.5 in)
Playing weight 1.5 g - 2.5 g (2.0 g recommended)
