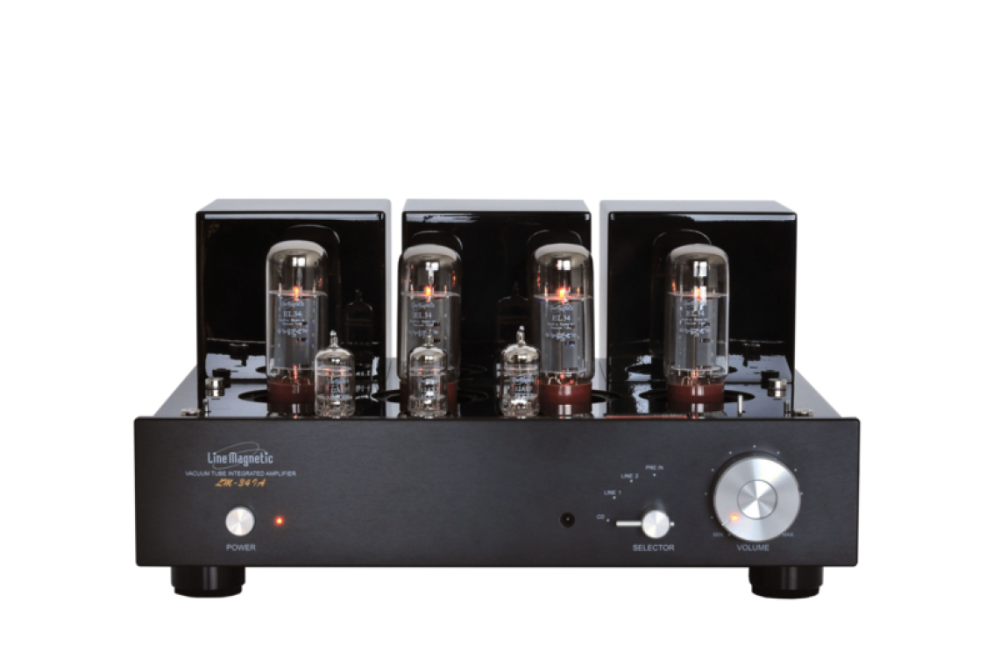

Line Magnetic Audio LM-34IA

HIGHLIGHTS

Class AB amplifier
Point-to-point wiring
High quality components
TUBES
Input stage: 1x 12AX7 - 2x 12AU7
Power stage: 4x EL34

Forty watts per channel, Class AB Integrated Stereo Amplifier with EL34 output power tubes, 12AX7 and 12AU7 input tubes.Standard with EL34 output tubes. Want to enjoy some other types of power tubes? That is why we have tube selector here.Different from other inputs Pre-In offers you a possibility to connect to some other Preamplifier so that you can the LM-34IA as a power amplifier.Specially designed EI transformers for power supply and two EI output transformers with wide bandwidth are applied. Hand made construction with the finest point-to-point wiring and special audiphiles components has carefull been selected by our designers.User bias control has been used for bias adjustment and one meter has been added to the top plate to allow you to monitor bias with ease.

MAIN FEATURES

Bias control is accessible on top of the amplifier panel with true ampere meter.
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Metal and removable tube guard cage
Infrared Remote control

LM 34IA
