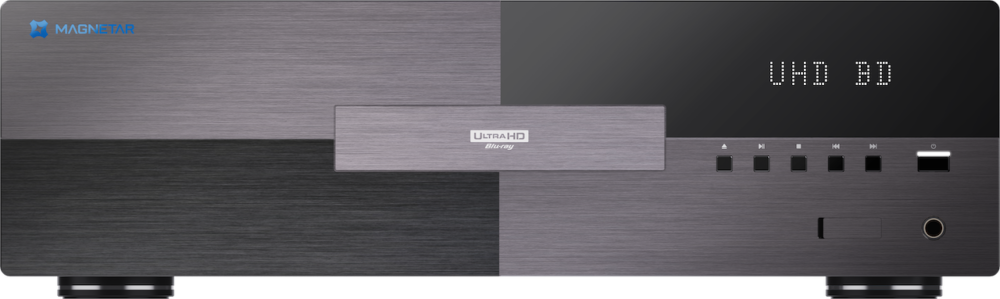

Magnetar UDP9000
Den har en låda av en aluminiumlegering och en förstärkt chassistruktur i två lager. De interna huvudkomponenterna är oberoende avskärmade av ett metallhölje, vilket kraftigt minskar vibrationer, brus och externa magnetfältstörningar för att ge rent och högupplöst ljud och video kvalitet.
Elegant and Solid Quality in Chassis Construction
The UDP900 dimensions are 445x321x133mm (including feet) and it weighs 15.5kg. It adopts an all-aluminum alloy body and a reinforced double-layer chassis structure.The internal main components are independently shielded by a metal casing, greatly reducing vibration, noise, and external magnetic field interference to bring pure and high-resolution audio and video quality.
Present Excellent Picture and Sound
UDP900 supports Dolby Vision and HDR 10+ high dynamic image standards.It features ESS9038PRO D/A decoding for 2-channel XLR balanced and RCA unbalanced outputs, as well as ESS9028PRO D/A decoding for 7.1 RCA output. Additionally, it supports XMOS USB Audio input.
Wide Range of Media Formats and Connections
UDP900 is fully compatible with a variety of disc formats, including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD and CD-R/RW. Additionally, it can easily connect to numerous media resources through USB 3.0 and supports up to a 16TB hard drive. It allows for sharing video, music and picture files through DLNA, SMB and NFS protocols while supporting a wide range of media formats such as MKV , AVI , MP4 , WAV , FLAC , APE , DSD etc. It enables users to effortlessly play and manage media files stored locally or on LAN devices.
Dual Power Supply Design
A 60W toroidal transformer is used to supply power for analog audio. It utilizes an imported magnetic core, high-quality oxygen-free copper wiring, metal shields, and full epoxy filling to reduce vibration noise and heat generation, thereby improving output and audio quality.
Disc formats
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
Outputs
Analog Audio Output: 7.1 channel RCA, 2 channel RCA and Balanced XLR
Digital Audio Output: Optical, Coaxial, HDMI
HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.
Analog audio characteristics
Frequency range: HIFI 2 channel: 20Hz~80kHz (±0.03dB); multichannel: 20Hz~80kHz (±0.05dB)
Signal-to-noise ratio: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
Distortion plus noise: ≤0.0005%
Output amplitude: (RCA) 2. 1±0.2Vrms. (XLR) 4.2±0.4Vrms
Dynamic range: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
Channel resolution: ≥110dB(2CH RCA); ≥140dB(2CH XLR)
General specification
Power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
Power consumption: <40W, Standby<0.5Wxtagstartz/p>
