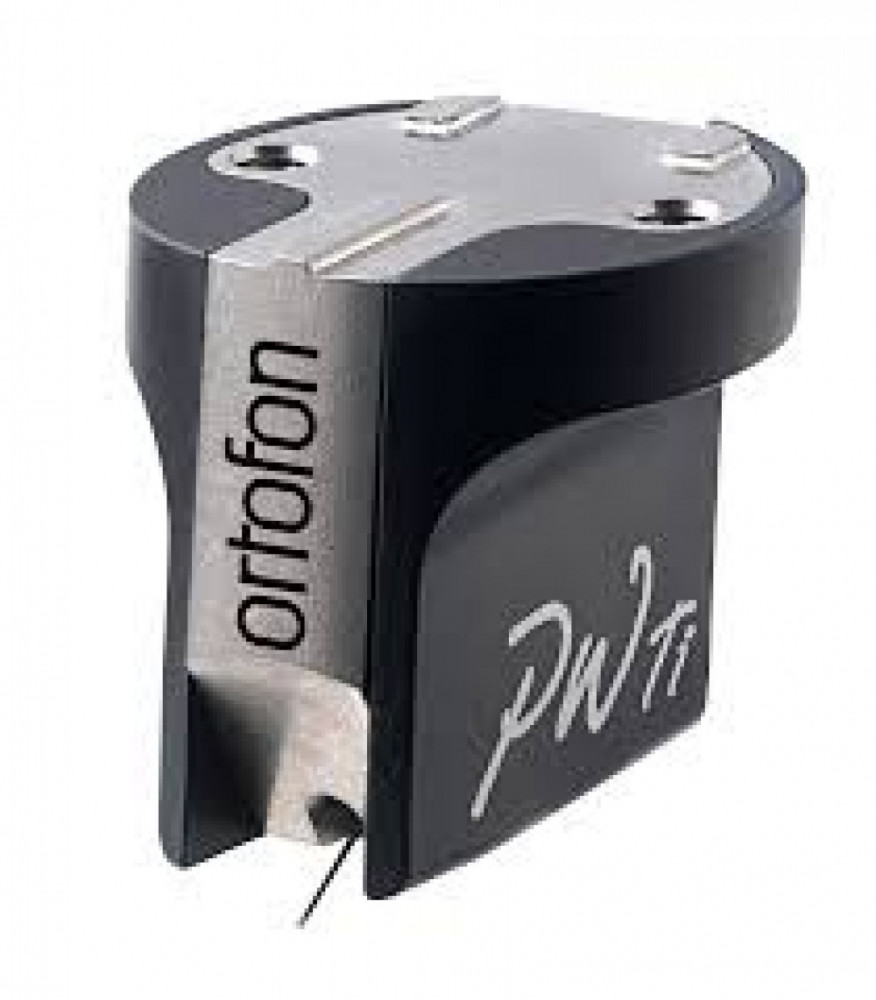

Ortofon MC Windfeld Ti

With optimized weight and moderate compliance to suit the majority of modern tonearms, the MC Windfeld Ti is easy compatible with an endless array of contemporary high-end turntable equipment, including the Ortofon TA-210 and TA-110 tonearms.

A low output impedance of 7 ohm and a medium output voltage of 0.2 mV makes the Ortofon MC Windfeld Ti a perfect partner for most MC pre-amps as well as step-up transformers, including the Ortofon ST-80 SE.

When combined with Ortofon’s world-class knowledge in analogue sound reproduction, The MC Windfeld Ti will undoubtedly provide sound which is literally unsurpassed and simply has to be experienced.

Korta fakta MC Windfeld:
►Precision och kunskap snarare än voodoo och önsketänkande.
►Den finaste diamanten i världen.
►Ny spol-teknik och exklusiva material.
►Neodymium magnet med FSE (Field Stabilising Element).
►Pickuphus med noll resonans och nålarm fixerad med "spikes".

Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz - 0.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 20 dB
Frequency range at - 3dB - 10 Hz - 50 kHz
Frequency response - 20 Hz - 20 kHz +2 dB/- 1 dB
Tracking ability at 315Hz at recommended tracking force - 90 µm
Compliance, dynamic, lateral - 13 µm/mN
Stylus type - Special polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus tip radius - r/R 5/100 µm

Tracking force range - 2.0-2.5 g (20-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
Tracking angle - 23°
Internal impedance, DC resistance - 7 Ohm
Recommended load impedance - > 10 Ohm
Coil wire material - Aucurum
Cartridge body material - SLM Titanium and Stainless Steel
Cartridge colour - Titanium/Black
Cartridge weight - 11 g
