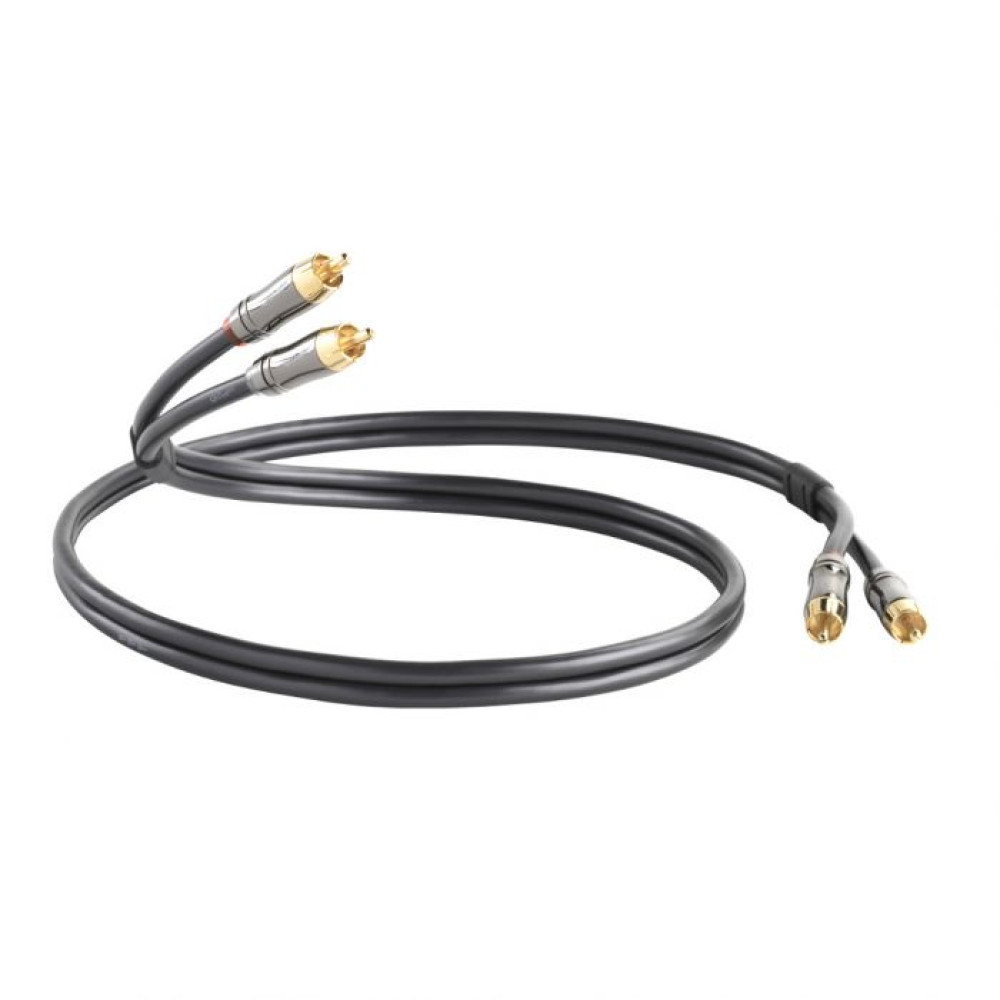

QED PERFORMANCE Audio Graphite
Det flerfaldigt prisbelönta Performance-sortimentet presenterar Performance Audio analoga interconnect.
Performance Audio använder designkoncept från det avancerade referensområdet för att optimera ljudprestandan när du ansluter din CD-spelare, DAC eller Tuner till din förstärkare eller mottagare. Dessa inkluderar kvasibalanserad geometri, dielektriska material med låg kapacitans och 24k guldpläterade RCA-kontakter.
EATURES AND BENEFITS
99.999% Oxygen Free Copper conductors Provide a low resistance pathway for the audio signal
Low density polyethylene dielectric because of its low dielectric constant this material has been used to cut down on the amount of audio signal energy lost due to cable capacitance
Ergonomically sculptured zinc plated alloy barrel Provides ease of installation and a stunning finish
Quasi-balanced geometry
Signal and return conductors are twisted together to give a level of common mode noise rejection above that of conventional unbalanced cables
Electrostatic Screen
Provides immunity from external high voltage noise signals. Only connected at the source equipment end hence the directionality arrows on the cable jacket.
24k gold plated phono plugs
Because gold does not tarnish it provides a lasting low resistance contact
SPECIFICATIONS
99.999% Oxygen Free Copper (OFC) conductors with LDPE dielectricQuasi-balanced twisted pair geometry
Al/Mylar wrap provides 100% electrostatic shield structure
OFC drain wire completes electrostatic screening
24k Gold plated QED 6 leaf RCA plugs
Capacitance: 115 pF/m
Inductance: 0.74 μH/m
Loop resistance: 0.160 Ω/m
Dissipation Factor: 0.0012
Modell
PERFORMANCE Audio GraphiteVarumärke
