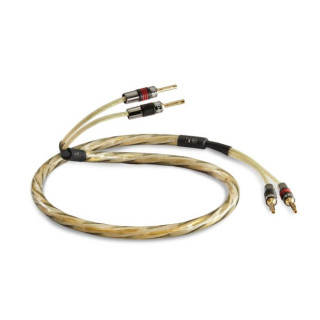

QED REFERENCE Golden Anniversary XT

QED firar sitt 50-årsjubileum med stil, med introduktionen av sin Golden Anniversary XT-högtalarkabel. Golden Anniversary XT-högtalarkabeln representerar kulmen på fem decennier av hängiven och omfattande forskning, ingenjörs- och ljudexpertis, och är den idealiska uppgraderingen för alla hi-fi-entusiaster som vill uppleva de ljudmässiga fördelarna med en högtalarkabel av hög kvalitet - men på en verkliga priset

Fem decennier av ljudteknik härstamning

QED har designat och konstruerat klassledande och prisbelönta analoga och digitala kablar i fem decennier - och Golden Anniversary XT är den senaste demonstrationen av företagets expertis.

Quality Electronic Design (QED) bildades 1973 av framåttänkande hi-fi-entusiaster, Bob Abraham och Ian Vine. Företaget anses nu vara det ursprungliga kabelmärket, efter att ha släppt QED 79 Strand, allmänt erkänd som världens första "specialist" högtalarkabel. Den här produkten visade hur kablar kan ha en påtaglig inverkan på ljudprestandan.

QED:s Genesis Report om högtalarkabeldesign följde. Denna forskning etablerade vetenskapligt bevisade principer, som är lika giltiga idag som de var för 28 år sedan och informerar alla QED-kabelkonstruktioner, inklusive den banbrytande X-Tube™-tekniken som möjliggör exakt och konsekvent signalleverans över hela frekvensområdet.



Key features at a glance

NEW X-Tube™ Plus technology combines X-Tube™ with Aircore™ to deliver an even, consistent performance across the entire audible frequency range.
Ultra-pure Ohno Continuous Cast Copper and 99.999% oxygen-free copper conductor blend helps improve the signal path and signal retention.
Low Loss Ultra-Uniform Dielectric insulation boosts efficiency and reduces signal loss.
Airloc™ Forte banana plugs use a cold weld system for permanent attachment to the cable for improved contact area and reduced resistance.
X-Tube™ Plus technology

QED’s innovative and proven X-Tube™ technology places a cable’s conductive material around a central hollow insulating rod - and the result is the elimination of the ‘skin effect’ that would otherwise force high-frequency analogue music signals to the outside of the conductor. And by combining X-Tube™ technology with its equally effective Aircore™ technology, QED also reduces the ‘proximity effect’ that can disrupt current distribution in a speaker cable. The result is X-Tube™ Plus: a ground-breaking cable geometry that ensures Golden Anniversary XT is a speaker cable with even, consistent performance across the entire audible frequency range.Ultra-Pure Ohno Continuous Cast Copper conductors

Golden Anniversary XT uses a unique hybrid blend of 99.999% oxygen-free copper (‘OFC’) and Ultra-Pure Ohno Continuous Cast Copper (‘UP-OCC’) to give the improved signal path and outstanding signal retention of ultra-pure copper conductors - but at a fraction of the price. Thanks to class-leading research and engineering, QED Golden Anniversary XT is the most affordable and attainable speaker cable to exploit the advantages of the continuous-casting process, with this hybrid theoretically improving the path for transients and high frequency detail not available using just OFC alone.Low-Loss Ultra-Uniform Dielectric insulation

If a speaker cable is to perform to its maximum potential, it’s important that the dielectric material which insulates and protects the central conductors of the cable does so efficiently. Golden Anniversary XT uses a specially developed and formulated low-density polyethylene (‘LDPE’), which works in unison with the cable’s X-Tube Plus configuration to deliver a speaker cable that has high-efficiency and a dissipation factor that is barely measurable.Airloc™ Forté banana plugs

Airloc™ is a specially developed cold-weld system for permanently attaching QED Forté banana plugs to the company’s entire range of speaker cables, Golden Anniversary XT included. The most vulnerable area of the speaker cable chain is the physical interface between the cable and the speaker or amplifier to which it’s connected - without effective termination, oxidation can occur, degrading the cable’s performance. By using a cold weld crimp-type termination, Forté banana plugs offer maximum resistance to oxidation - for the lifetime of the cable - by effectively turning the cable and the plug into a single, unified object.

Cross-sectional area 2.5 mm2
Wire gauge 14 AWG
Jacket outside diameter 11.5 mm
Loop inductance 0.58 μH/m
Loop resistance 14.8 mΩ/m
Capacitance 42.0 pF/m
Dissipation factor @ 10 kHz 0.0090
Conductors 9 x 19/0.13 mm OFC + 1 x 19/0.13 mm UP-OCC
Insulation LDPE jacket with 100% coverage of golden/mylar tape wrap
Plugs and spades QED Airloc™ Forte banana plugs

December 2023
"The Golden Anniversary XT helps our reference system deliver high levels of clarity and dynamic subtlety...There is no doubt that the QED Golden Anniversary XT is an excellent performer. If your system merits a speaker cable at this level, put this one on your shortlist."

What Hi-Fi?, 5 Stars



October 2023
"(In conclusion) the Golden Anniversary XT cable delivers outstanding performances at a very reasonable cost."

Hi-Fi Choice, 5 Stars, Recommended Award



July 2023
"Their full-bodied balance should work brilliantly in many systems...In terms of performance, these cables get a lot right for the money…cables that will enhance your musical enjoyment without breaking the bank."

The Ear, Best Buy Award



July 2023
"The QED Golden Anniversary XT Loudspeaker Cables are a fantastic bargain for their asking price; the build quality, termination, and overall sound quality are very hard to fault."

ecoustics, Editor's Choice Award



June 2023
"They will grab as much detail from the music as the price point of these cables will allow. They will lower the noise and allow your hi-fi to shine. They also try their best to get out of the way, while giving the music itself a sense freedom but also a firm framework to work within…Again, it’s a trust thing. You can rely on the QED Golden Anniversary XT cables. "

The Audiophile Man, Deeply Groovy Award



June 2023
"I barely need to say that, compared to high-end cables costing 10x more, QED’s Golden Anniversary XT represents stunning value. It’s equally refreshing to discover a cable whose technical specification precisely matches that found in our independent testing. All of which contributes to the reassurance of a brand, and cable, offering no-nonsense sound and build quality at a great price. In the sparsely populated world of hi-fi bargains, this one is Golden! "

Hi-Fi News, Editor's Choice Award
