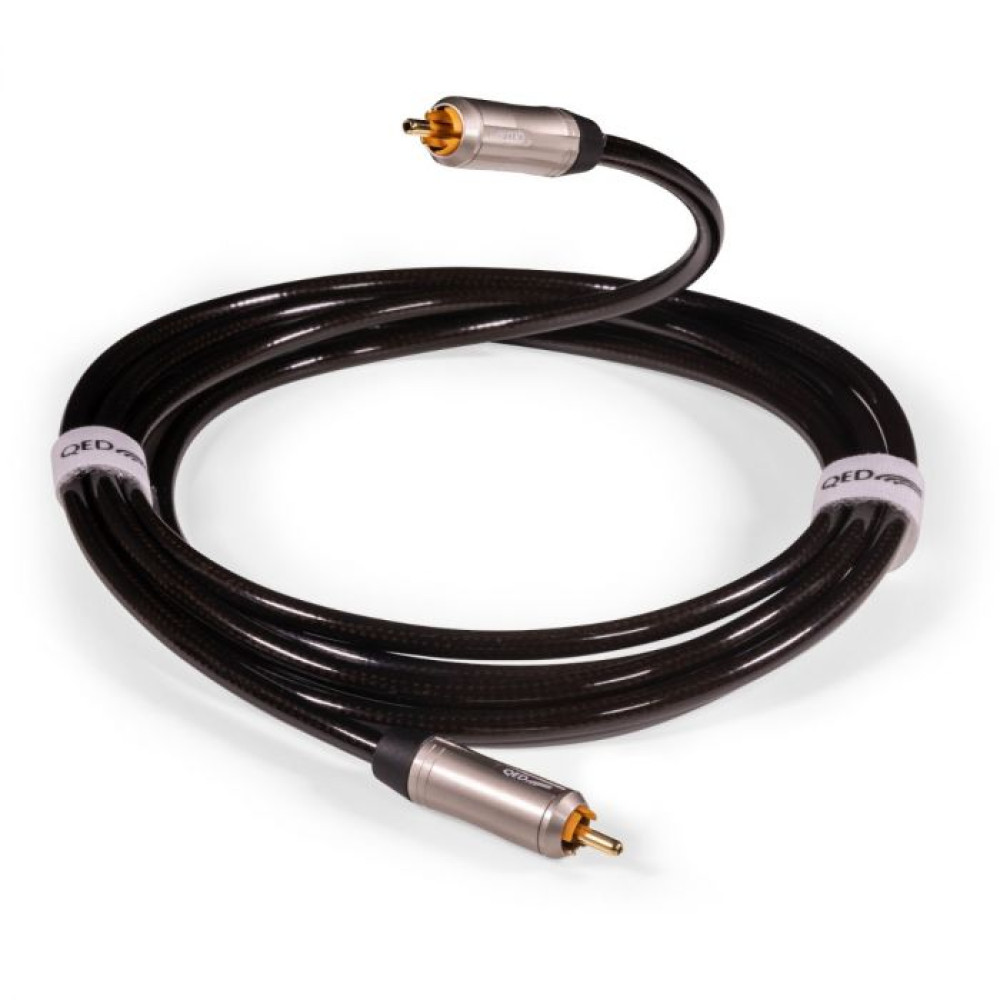

QED REFERENCE SUBWOOFER 40

QED Subwoofer 40 har designats i första hand för låg kapacitans, eftersom detta har identifierats av QED som en viktig faktor som ger ett stramt ljud som behåller rytmen från originalstycket - avgörande när det kommer till "bottom end!" förbättras av QEDs Complementary Conductor Technology™ kombinerat med en speciell flytande Zn/Mn ferritmantel för att absorbera mycket högfrekventa brussignaler utanför det hörbara bandet QED Analoc2™-pluggdesignen hjälper till att kontrollera virvelströmmar som också kan påverka mikrotimingen av ljudsignalen och bibehåller högtrohet från början till slut.

Award Winning Heritage

QED has won more What Hi-fi Awards than any other single brand. With the Reference cable range this heritage is delivered directly and without compromise. All QED cables are designed using the top-down principle with Reference Subwoofer 40 representing the pinnacle of musical performance.

Floating Internal Ferrite Jacket

Absorbs high frequency noise signal components outside the audio band. When measured using high frequency measurement equipment, Audio 40 products convey a comparably cleaner and tighter signal pattern when its special Zn/Mn ferrite jacket is present. This has a beneficial effect on audio signal micro-timing and may account for the clear preference expressed for the ferrite jacket in listening tests.

Just Listen

Silver plated signal carriers, effective high-quality shielding and low eddy current plugs all combine to create audible sonic improvements. We urge you to compare it not only to your favourite cable but also alternative brands and models at any price!

All-new Analoc2™ connector design

The Analoc2™ design still features low bulk, high purity copper connectors alongside low mass metal barrels, but now cleverly substitutes high rigidity thermoplastic material for both the inner support structure and the cable strain relief to eliminate the detrimental effects of eddy currents. Although already smaller than in traditional bulk brass plugs, these unfavourable currents were still able to circulate weakly in the isolated metal body of the previous plug design. Now with the new material in place, these remnant resonant distortions are completely prevented from adversely affecting the information contained in the audio signal as it travels through the new plug.To complete the RCA plug’s Analoc2™ upgrade and to help combat the skin effect, the hollow, gold plated, high-purity copper signal-pins are retained, while the effectiveness of the slip ring which locks in place the similarly plated, pure copper ground-terminal as the barrels are tightened, has also been improved.


Complementary Conductor Technology

Improves timing and detail, retaining the rhythm of the original piece - vital when it comes to the "bottom end." Unlike conventional analogue interconnects, Reference Audio 40 uses two silver-plated 99.999% Oxygen Free Copper conductors of different diameters to carry the same audio signal. This has the effect of providing an alternative signal path for more subtle audio components which might otherwise become time smeared in a single audio pathway. Reference Subwoofer 40 is further optimised by having a 25% smaller diameter than Reference Audio 40 making it more convenient for those long runs around the room.

Specifications
QED Complementary Conductor TechnologyTM with 99.99% Silver Plated Oxygen Free Copper
Zn/Mn ferrite jacket to absorb high frequency noise signals
Low losss foamed polyethylene (PE) dielectric
99.999% Oxygen Free Copper braid for 100% electromagnetic screening coverage in a coaxial geometry
Twin leaf 24c Gold plated QED Analoc2™ RCA plugs featuring high purity copper contacts, hollow centre pin and low eddy current design
Conductor Section 0.30 mm2
Parallel Capacitance 124 pF/m
Loop Resistance 0.076 Ohm/m
Loop Inductance 0.33 μH
Dissipation Factor @ 10 kHz 0.0210
Outside Diameter 6 mm
