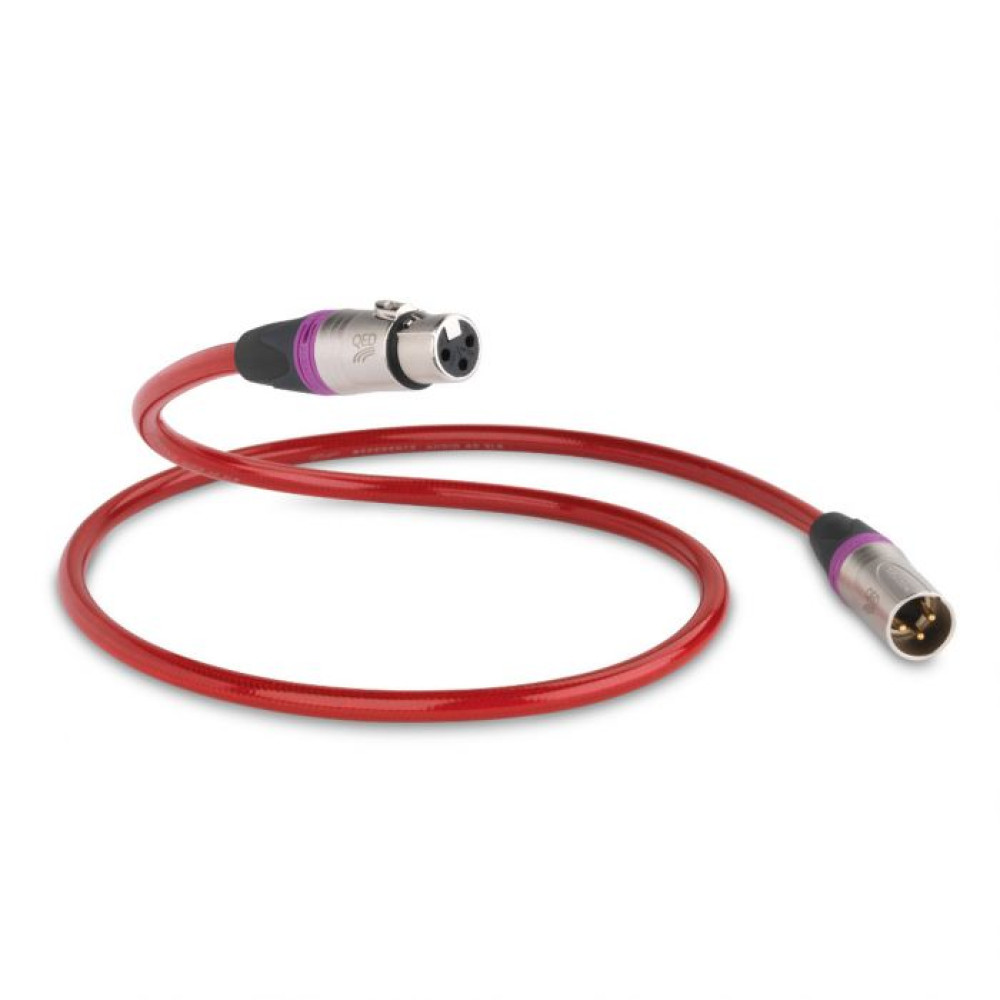

QED REFERENCE XLR 40 Digital
XLR 40 är designad främst för lågt jitter eftersom detta har identifierats av QED som en viktig faktor som leder till en högtrohetsupplevelse. Ytterligare steg har vidtagits för att eliminera minimala tidsfel i kabeln genom att använda en speciell flytande Zn/Mn ferritmantel tillsammans med QEDs unika 'Tri-Conductortm'-teknologi som reducerar signal-till-jordkapacitansen till försvinnande låga nivåer.
Award Winning Heritage
Reference XLR 40 builds on the multi-award winning Audio 40 range of products, now available in XLR form. QED have joined forces with world renowned professional audio connector supplier Neutrik (UK) to bring you an innovative new XLR balanced interconnect cable with legendary build quality and reliability.
Professional Standard Neutrik plugs
Neutrik XX-14 Nickel Series XLR gold plated connectors are provided as standard with Reference XLR 40 cables. These connectors are rugged and reliable and are the connector of choice for audio professionals around the world. They are particularly suited to QED's Tri-ConductorTM geometry due to the additional ground spring contacts which make for better shell ground continuity for the unique electrostatic screen which is only connected at the source end of the cable.
Just Listen
Silver plated conductors, LDPE dielectrics and legendary build quality combine to create audible sonic improvements. We urge you to compare Reference XLR 40 not only to your favourite cable but also alternative brands and models at any price!
Floating ferrite jacket
Absorbs high frequency noise signal components outside the audio band. When measured using high frequency measurement equipment, Audio 40 products convey a comparably cleaner and tighter signal pattern when its special Zn/Mn ferrite jacket is present. This has a beneficial effect on audio signal micro-timing, reducing digital jitter and timing errors to an ultra low level.
Specifications
99.999% Silver Plated Oxygen Free Copper 24 AWG Tri-Conductors with foamed PE dielectric
Unique floating Zn/Mn impregnated ferrite jacket
99.999% OFC outer shield braid for 100% electrostatic screening
High performance gold plated Neutrik XLR connectors with low contact resistance and high signal integrity
Ultra Low Jitter
Conductor Section 0.25 mm2
Characteristic Impedance 110 Ohm nominal
Dissipation Factor@10kHz 0.0001
Nominal Outside Diameter 8 mm
OVERALL PERFORMANCE
Ultra Low Jitter
Jitter is the undesired deviation from true periodicity of an assumed periodic signal in electronics and telecommunications, often in relation to a reference clock source. A cable displaying ultra low jitter has been measured attypically 30ps.
Ferrite Insulation Technology
Like putting wooden wheels on a Ferrari, conventional RCA phono plugs have the potential to undo all of the hard work carried out by our carefully designed cordage. With Anamate and Analoc RCA plugs, the fidelity of the audio signal is maintained form start to finish.
Tri Conductor Technology
QEDs unique Tri-Conductor technology uses a third Silver plated 99.999% OFC conductor which is integrally twisted alongside the similarly constructed signal pair to carry the ground return currents.
Modell
REFERENCE XLR 40 DigitalVarumärke
