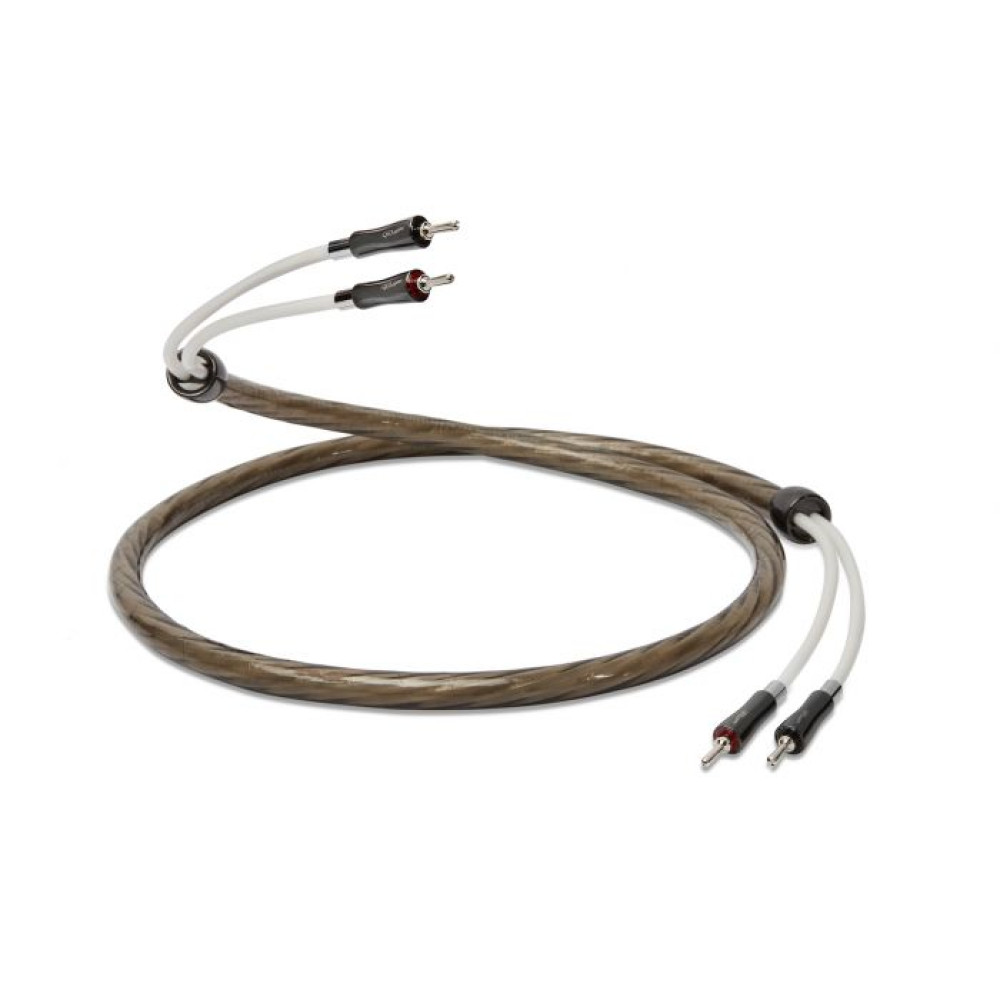

QED SIGNATURE Supremus Zr

Snabba fakta:
Zirconia Airloc™-design: NYA slitstarka zirkonium och  ger hållbarhet och motståndskraft mot prestandapåverkan, i ett elegant material.
Kallsvetssystem: förenar ledarna och pluggkomponenterna för en livstid av perfekt funktionalitet.
Rhodiumpläterad låskonstruktion: säkerställer optimal kontakt mellan en högtalarfäste och kabelkontakten för en underhållsfri anslutning.
Aircore-teknik: ger en jämn, konsekvent prestanda över hela det hörbara frekvensområdet.
6,2 mm² ledare med ultralågt motstånd: gör att din förstärkare effektivt kan utöva fullständig kontroll över dina högtalare.
Kryogen behandling: säkerställer en perfekt kabelmikrostruktur för mer naturlig tonalitet.

Zirconia Airloc™ Design

NEW: Zirconia barrels and bootsThe exceptionally high mechanical strength of zirconia, its remarkable resistance to scratches and general wear, and its glossily lustrous finish, make it the ideal material for this cable’s barrels and boots. Not only are the Supremus Zr plugs gleaming and tactile, the electrically inert nature of zirconia also means eddy currents cannot become established and therefore plug-induced distortion remains vanishingly low.

Airloc™ Cold Weld System

Our high-pressure termination process compresses the conductors and plug together, creating a cold-welded area where conductors and plug effectively become one. Because all the air has been removed from the joint, there can be no oxidisation or degradation in conductivity - and that’s true for the entire lifetime of the cable.

Rhodium-plated Locking Design

Aside from its purely decorative properties - which are considerable - rhodium makes the surface of the Supremus Zr connectors very smooth, increasing the contact area and reducing resistance. Designed specifically for Supremus Zr cable, this unique contact expansion system securely clamps the rhodium-plated beryllium copper pins into the speaker terminals, while at the same time increasing the contact area of the plugs, simply by twisting the plug barrel until it is tight. And because it’s so very hard-wearing and resistant to oxidisation, rhodium can cope with the extra load exerted by our locking design - which ensures a perfect, maintenance-free connection.

Aircore™ Technology

Loudspeaker cables with large cross-sectional areas are prone to skin effect, where high-frequency analogue music signals are forced to the outside of the conductor, and proximity effect that disrupts current distribution. QED’s innovative Aircore technology combines hollow tubular conductors - to minimise the skin effect - with polyester insulation and a special spiral construction to reduce the proximity effect. This highly effective combination evens out current density and significantly improves the cable's uniformity throughout the audio band.

6.2 mm² Ultra-low Resistance Conductors

Boasting a large cross-sectional area, the ultra-low resistance, silver-plated, oxygen-free copper conductors effectively bring the amplifier electrically much closer to the loudspeakers, enabling it to exercise better control over them, so the fidelity of the original music signal can be more accurately maintained.

Cryogenic Treatment

Cryogenic treatment improves the microstructure of the copper core by eliminating crystalline dislocations. Numerous brass musical instruments at all points of the frequency range have been found to produce a better, more natural tone after deep cryogenic treatment.

Specifications

Cross-sectional area: 6.20 mm2
Wire gauge: 10 AWG
Outside diameter: 17 mm
Loop resistance: 0.005 Ω/m
Parallel capacitance: 48 pF/m
Loop inductance: 0.49 μH/m
Dissipation factor: 0.009
Technology: QED Aircore™; cryogenically treated; QED Airloc™
Conductors: 32 solid core, silver-plated, 99.999% oxygen-free, polyester coated copper
Dielectric: Foamed polyethylene, LDPE, and air
Plugs: Rhodium-plated, locking Airloc plugs with zirconia barrels
