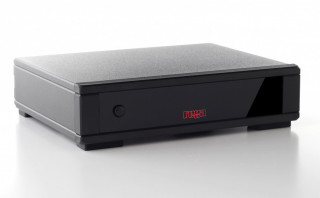

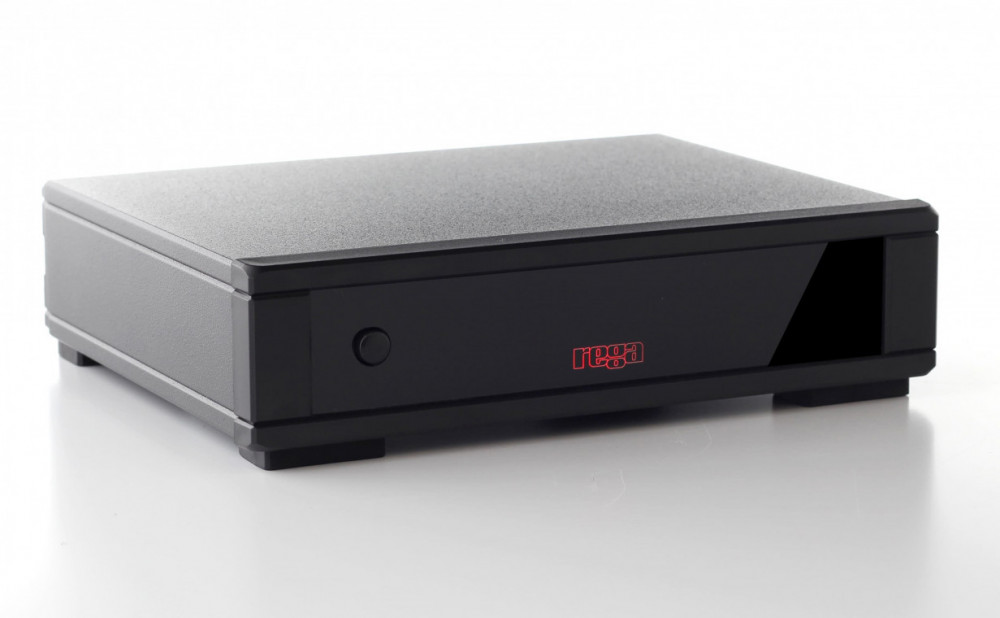

Rega FONO MC MK4

Rega Fono MC MK4 hos Lefflers Ljud & Bildupplevelser i Norrköping

Fono MC är ett exceptionellt högkvalitativt MC riaa-steg som är utformat för att maximera potentialen hos alla MC-pickuper.

Fono MC använder en linjär förstärkare med låg ljudnivå LSK389 FET i ett helt
diskret ingångssteg där lågt brus och linjäritet är avgörande för att
få ut det mesta av en MC-pickup. På grund av FET: s höga
ingångsimpedans är effekten av förstärkarkretsen minimala
och påverkar inte pickupens prestanda

KEY FEATURES

Dedicated moving coil phono stage
Simple connectivity and operation
Fully adjustable via DIP switches via rear panel
MUSE operational amplifier used in RIAA equalization amplifer
Two selectable gain settings
Default factory settings matched for all Rega MC models
Latest design custom casework

Lifetime warranty against manufacture defectsThe Fono MC MK4 is an exceptionally high quality MC phono stage designed to maximise the potential of any low output MC cartridge. Although specifically designed to compliment the latest Rega range of moving coils you will find full adjustability for gain and loading via dip switches conveniently placed on the rear panel making the Fono MC MK4 compatible with a wide range of third party low output MC cartridges. Now housed in a brand new redesigned case to match the new Fono MM MK5 and Neo MK2 and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.

The Fono MC MK4 has been designed to be effective, easy to use, and above all, to reproduce music. The Fono MC MK4 uses the Linear Systems low noise LSK389 FET in an all discrete input stage where low noise and linearity are vitally important to get the best from an MC cartridge. Because of the high input impedance of FET, the loading effects of the amplifier circuit are minuscule and do not affect the performance of the cartridge.

TECHNICAL SPECIFICATIONS
Output Impedance
200 Ω
Recommended Minimum Output Load Resistance
5 k
Frequency Response (50 kΩ Output Load)
13 Hz (-3 dB) to 100 kHz (-0.3 dB)
RIAA Accuracy (50 kΩ Output Load)
Better than ±0.2 dB 100 Hz to 100 kHz
Power Requirements
24 V AC at 150 mA maximum
For full technical specifications, download FONO MC MK4 USER MANUAL below.
LOAD SETTINGS FOR ADJUSTABLE MC STAGES
Input Sensitivity (for 200 mV Output)
4 off = 133 uV / 4 on = 67 uV
Input Loading Resistance
1 and 2 off = 400 Ω / 1 on = 100 Ω / 2 on = 150 Ω / 1 and 2 on = 70 Ω
Input Loading Capacitance
3 off = 1000 pF / 3 on = 4300 pF / Gain (at 1 kHz) / 4 off = 63.5 dB / 4 on = 69.5 dB
Maximum Input Level (at 1 kHz)
4 off = 6.7 mV / 4 on = 3.4 mV
Factory settings for all Rega MC cartridges
Impedance 100 Ω / Capacitance 1000 pF / Gain Setting High

https://www.rega.co.uk/download/fono_mc_MK4_user_m...

"Flexible setup and compact handsome appearance. An outstanding affordable MC phono stage that delivers superb performance."
HI-FI CHOICE
