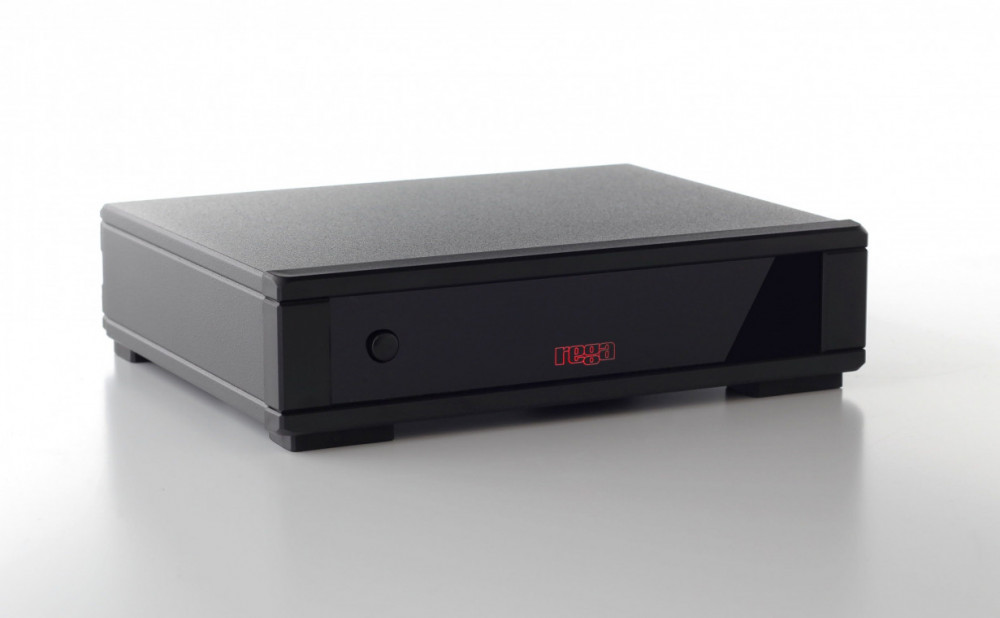

Rega FONO MM MK5

RIAA-steg ("Phono-steg") för MM-pickuper. Nätadapter (Rega PS1) medföljer.
Rega Fono MM är ett otroligt välljudande och lättarbetat Phono-steg optimerat för Moving-Magnet-pickuper.
Formspråket kommer från den nya R -familjen och metallchassiet är detsamma som TT-PSU och Ear.
Rega Fono MM finns i svart.

KEY FEATURES

Dedicated Moving Magnet stage
Simple connectivity and operation
Custom case design
Two stage RIAA Equalization
What Hi-Fi? Award winner 2017/2018/2019/2020/2021
Lifetime warranty against manufacture defects

The perfect partner
The aesthetic design of the Fono MM was as important as the quality of its electrical capabilities, so it benefits from the same updated aluminium case as the Rega Neo and Fono MC amplifier, giving it a design which offers a familiar feel and moreover brings it in line with its illustrious bigger brothers. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

TECHNICAL SPECIFICATIONS
Input Sensitivity1.7 mV for 200 mV Output
Input Loading47 kΩ in parallel with 100 pF
Maximum Input Level60 mV at 1 kHz
Gain41.4 dB at 1 kHz
Output Impedance200 Ω
Recommended Minimum Output Load Resistance5 kΩ
Frequency response (50KΩ output load)15 Hz (-3 dB) to 100 kHz (-0.2 dB)
RIAA Accuracy (50 kΩ Output Load)Better than ±0.2 dB 100 Hz to 100 kHz
Power Requirements24 V AC at 80 mA maximum

https://www.rega.co.uk/download/fono_mm_user_MK5_m...

Rega has once again succeeded in all it set out to do. That Award-winning sound oozes through our speakers, yet with the lowered noise floor offering more clarity and expanding the horizons of its dynamic range.
WHAT HI-FI?
