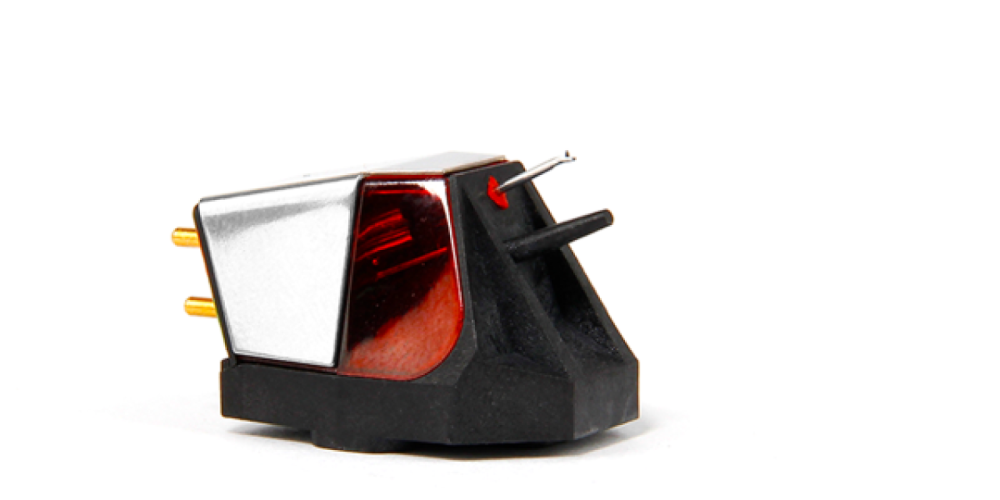

Rega Nd3

KEY FEATURES

Elliptical profile stylus
Aluminium cantilever
Neodymium magnet
Unique generator
Rega 3 point mounting system
Highly rigid lightweight PPS body
Handmade stereo cartridge
100% recyclable packaging
Lifetime warranty against manufacture defects

Den helt nya Nd3 MM-pickupen har utvecklats under 10 år och lovar att leverera "nästa nivå" prestanda av MM-pickuper. Nd-serien (patentsökt) tror vi är en världsförst med att använda ultrahöga neodymmagneter som gör att vi kan skapa denna helt unika design.

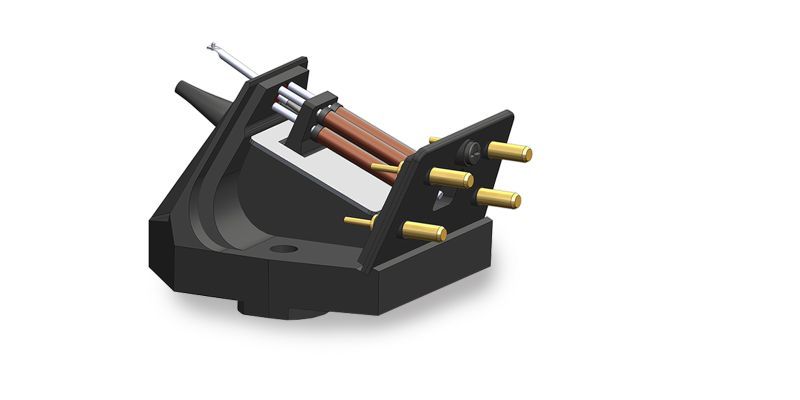

Varje Nd3 är minutiöst handgjord av våra mycket skickliga tekniker. Designen använder helt ny generatorgeometri med perfekt symmetri för att uppnå exakt kanalbalans. Nd3 har också en optimerad polgap för överlägsen linjäritet och överhörningsegenskaper, detta ger ett mycket bredare ljudbild än de tidigare modellerna. Den här nya kassetten är skapad med miniatyriserade parallella spolar som är lindade i huset med hjälp av 38 mikron tråd med bara 1275 varv. Detta ger en generator med låg induktans och låg impedans som ger avsevärt förbättrad högfrekvensrespons. I enlighet med vårt engagemang för hållbarhet, levereras Nd-serien i 100 % återvinningsbar förpackning.

Nd Magnet technologyOften used in Moving Coil designs (including our own) we believe the Nd3 is the first moving magnet to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.

Glass filled PPS bodyThe complete assembly is housed in our zero tolerance Injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by our hugely successful MC range.

Cantilever & stylus profileThe Nd3 aluminium cantilever is fitted with a precision elliptical stylus. This profile provides exceptional tracking accuracy and extracts great levels of detail from the vinyl surface.

Factory Fitted optionsThe Nd3 cartridge will be offered as a factory fitted option on the Planar 2 and Planar 3 turntables offering exceptional performance and value for these models. The factory fitted package is offered at a discounted rate compared to when purchased separately, ask your Rega dealer for details.

Rega rebuild schemeThe unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus. If you should damage or wear out your Rega cartridge, simply return it to you Rega dealer and they will supply you with a rebuild cartridge fitted with a new cantilever, stylus and pivot pad. Each rebuild is fully tested as a new cartridge would be. The rebuild is sold at a reduced price once you trade in your worn or damaged cartridge that is equivalent to a replacement stylus offered by other manufacturers.

TECHNICAL SPECIFICATIONS

Nominal Output Voltage5-6mV

StylusElliptical

Fixing3 point fixing

CoilsMiniaturised parallel coils

Window ColourRed

Tracking pressure1.75g
