REL Carbon Special
Innehållet kan inte visas
12" framåtriktat element, 12" slavbas nedåt. Förberedd för trådlös överföring, sändare säljs separat.
1000watt nextgen5 klass D förstärkare. Ställbar delning ner till 30hz. 12db filter.
Hög och låg-nivå ingång med separata volymer. 10m högnivåkabel inkluderat.
Carbon Special är en ny modell med begränsad tillgänglighet som kombinerar vår senaste teknik med banbrytande komponenter från vår referenslinje, allt inrymt i ett måttligt stort chassi. Den har vår tredje generationens 12-tumsdrivrutin i kolfiber med en ny, skräddarsydd passiv CSP-drivrutin som ger 50 % längre slaglängd, som drivs av vår förstärkare på upp till 1 000 watt, som i sin tur styrs av vårt CS PerfectFilter™. Ett helt nytt skåp med högpolerade metall- och kolfiberdetaljer visas bara i den här modellen.
Elevating low bass performance and overall clarity
Perfect is not a word REL throws around lightly but these latest filters are so good they require its use. Our PerfectFilters elevate the low bass performance to a new standard for a mid-chassis design, while subtle tweaks to its upper range performance allow for an airier, more transparent soundstage and improved clarity throughout the entire system’s performance. It is impossible to overstate its benefit to a fine audio system and all benefits that accrue to its musical performance go on to expand its merits in power theatre. A true two-for-one upgrade.
Sound Beyond Its Size
Inspired by the G/1 MK II
The key to Carbon Special’s amazing performance is its new BlackWidow 12”(350mm) forward firing active driver. Carbon fibre grabs the headlines with its ultra-lightweight and tough, resilient nature. Carbon fibre, while light, has excellent self-quieting properties that allow for far greater dynamics because the driver itself is so quiet. This generation 3 version features a much larger surround to better allow the explosiveness needed to set itself apart from the pack. The inner suspension was re-tuned to take advantage of this and the result, found only here and upcoming versions of the G-1 MK II is a 12” that hits like a heavyweight but reacts like a much smaller driver.
Now Hear This
NextGen5 1000W Digital Amplifier
Power matters, and especially when our CS PerfectFilter demands more from the driver, additional power is crucial. This is why we placed the heart of our flagship No.25 amplifier into Carbon Special. At up to 1,000 watts, it has the current reserves to easily keep up with the demands placed upon it by even the most rigorous user. Carbon Special is capable of startling the listener, used in dual duty for both theatre and music its merits are immediately obvious in music which can lull the theatre aficionado into complacency, only to be yanked out of any sense of normalcy when a huge, unexpected transient explodes without warning. Think Pierce Brosnan’s 007 using plastique at work here.
Totally Stacked Performance

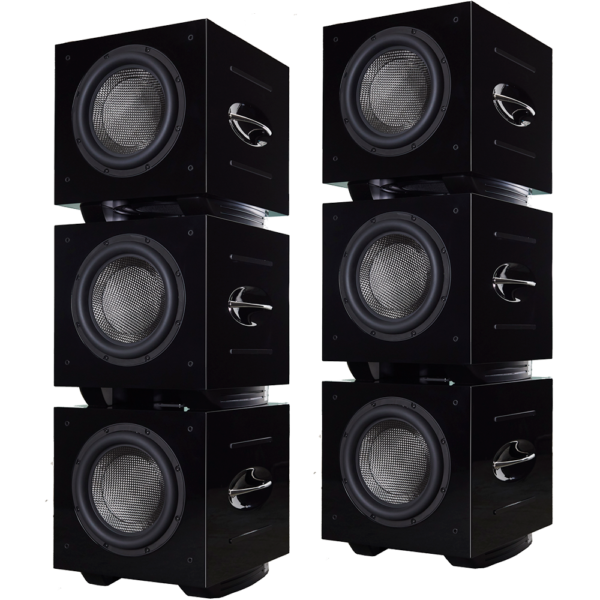

The REL Line Array
REL’s signature gift to the art of sub bass performance is undoubtedly our Reference Line Arrays, wherein three units per side are stacked vertically. This arrangement was practically invented for subs with the deportment of Carbon Special. For those who always dreamed of owning a REL Reference Line Array but were denied it because of their size, your ship has arrived.
Without Wire’s Snarl

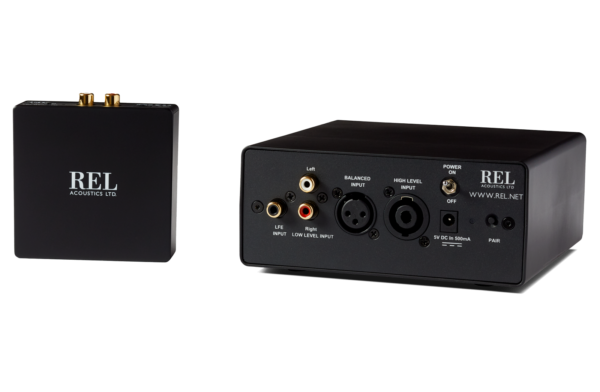

AirShip™ Wireless Connectivity
Carbon Special works brilliantly with AirShip™, our state of the art wireless that transports sound invisibly with none of the compromises of conventional wireless. Available optionally, and at reasonable expense with Carbon Special. While most wireless compresses horribly, Airship uses military grade 5.8Ghz wireless with zero compression to send signals so pure and fast they sonically outperform hardwired using anything but the best cables. Not having to see a snarl of cables tangling up in one’s grand salon is itself a reward for you having worked so hard.
Specifications
Type
Front-firing active driver, down-firing passive
Active Driver Size & Material
12 in. (300mm) long-throw, carbon fibre cone with inverted carbon fibre centre cap, die cast alloy chassis
Passive Radiator Size & Material
12 in. (300mm), Carbon/Carbon flat cone structure, steel chassis
Low Frequency Extension
-6 dB at 19Hz (in Room)

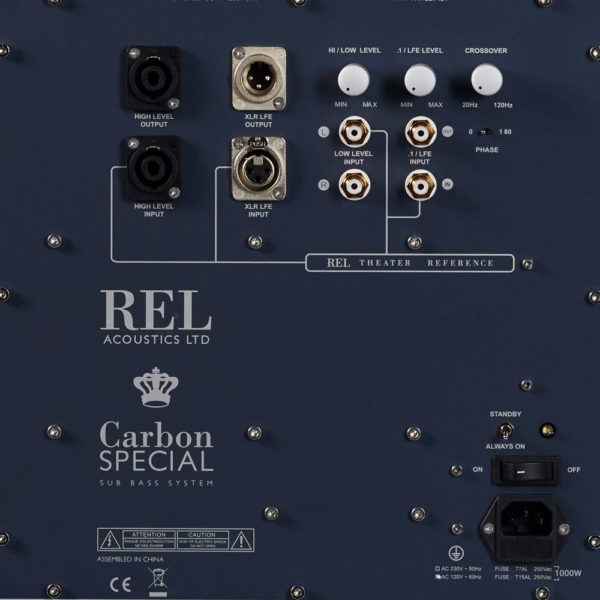

Input Connectors
High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR
Output Connectors
High Level Neutrik Speakon, (1) LFE RCA or (1) LFE XLR
Power Output
800 watts (RMS). Up to 1,000 watts (RMS)
Amplifier Type
NextGen 5 Class D
Wireless Capability
REL AirShip II (sold separately)
Dual Parametric Filter
N/A
Protection System
Fully Electronic Set Safe
Yes
D.C. Fault
Yes
Output Short
Yes
Mains Input Voltage
220-240 volts, 110-120 volts for certain markets
Fuses
5 Amp 220 volts operation, 9 Amp 120 volts operation
Dimensions
W x H x D
(430 x 455 x 539 mm)
Net Weight
(38.7 kg)
Finish
Piano Black Lacquer, 8 coats
Supplied Accessories
Mains Lead
Yes
Neutrik Speakon
Yes (10 Meters Nominal)
Interconnect
Users Manual
YesExplore AirShip
