Ruark Audio R610 Music Console

2 x 75W Effektförstärkare
Spotify Connect & Tidal Connect
• AirPlay & Google cast
• DAB, DAB+, FM Radio och Internetradio
• HDMI eARC
• 5” TFT display
• Analog & Digital ingång / Phono MM
• Sub Out

Ruark Audio R610 Music Console kombinerar retroinspirerad estetik med banbrytande ljudteknik. Med en design som hyllar 1970-talets klassiska stereosystem har R610 en handgjord träfront med eleganta ribbade valnötsdetaljer, vilket ger en tidlös och sofistikerad känsla.

Utöver sin stilrena design är R610 en kraftfull och mångsidig musikcentral. Den stöder Spotify Connect, Tidal Connect, Apple AirPlay 2 och Google Cast, samt Internet-, DAB/DAB+ och FM-radio. Med en högpresterande inbyggd DAC kan den streama högupplöst musik upp till 32-bit/384kHz, vilket säkerställer en detaljrik och dynamisk ljudupplevelse.

För vinylentusiaster finns en inbyggd phono-steg (MM), och med en valfri USB-CD-enhet kan funktionaliteten utökas ytterligare. R610 är även utrustad med Ruarks ikoniska RotoDial-kontroll och en skarp färgskärm, vilket gör användarupplevelsen både intuitiv och elegant.

För en komplett ljudupplevelse levereras R610 med 3 meter högtalarkabel, vilket gör att du snabbt och enkelt kan sätta upp ditt system och njuta av Ruarks signaturljud i sin fulla prakt.

Designed to Perform

R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system’s motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 watts per channel, R610 is controlled and dynamic – but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.

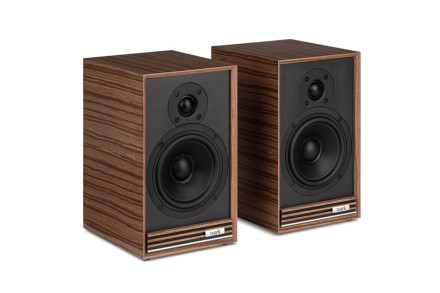

R610 Music Console shown with Sabre-R Bookshelf Speakers (sold separately)






You’re in Control

Our RotoDial controller has been a distinctive part of our products since 2006. For 100 Series we have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5" TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.





Divine Connection

Our R610 provides all the connectivity you are ever likely to need, and with a powerful processor it is capable of handling the highest quality audio streams. With Internet Radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast all built in, a vast selection of music awaits to be discovered.

R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback we have our own compact disc player called R-CD100. This integrates with R610 via the USB socket on the rear and once connected CD is automatically added to the source list. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.

Specifications


Audio

Amplifier: 2 × 75W per channel Class-D
Frequency response: 22Hz-22kHz +0/-3dB
Enhancements: Stereo+, bass, treble, loudness
DAC: Up to 32-bit/384kHz resolution
Features

Display: Hi-contrast 5" colour TFT
Auto-Standby: Automatic power saving mode
Adjustable input levels: Line-in, phono-in, optical and HDMI
USB Charge Port: USB-C 5V 1A (5W)
Software Updates: Over-the-air and USB
Controller: Ruark RotoDial control system
Remote control: Ruark RotoDial Bluetooth rechargeable remote
Presets: 20 global presets
App control: Via Spotify, BBC Sounds and more
User interface languages: Multilingual

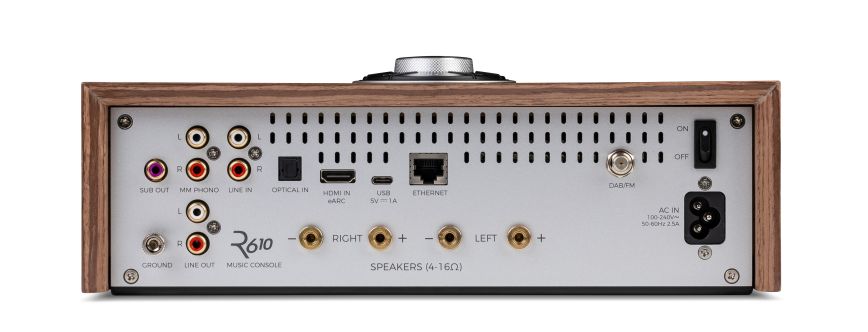

Connectivity

Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
Multiroom capable: Via Apple AirPlay and Google Cast
Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Streaming: Apple AirPlay and Google Cast
Built-in music services: Spotify Connect and TIDAL Connect
Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and more
Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
Ethernet: RJ45 connector 10/100 Mbps
DLNA: UPnP™ DLNA media server compatible
CD support: CD playback via optional R-CD100 CD player
HDMI: ARC and eARC
Line-input: Stereo RCA input (up to 2.3Vrms)
Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors
Subwoofer-output: Volume related full-frequency mono RCA connector
Optical input: TOSLINK digital input up to 24-bit 96KHz
USB-C: playback port
Aerial connector :75Ω F-type

Supported Audio Formats

FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
MP3: up to 48kHz 320kbps
AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
General Specifications

Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer
Product dimensions:H95 × W300 × D280mm (cabinet)H107 × W300 × D280mm (with Rotodial controls)
Product weight: 4.1kg
Product power input: 90-240VAC, 50-60Hz, 2.5A
Power consumption: 2.0W network standby, 8.0W idle
Gift Box Content:R610 Music Console,3m speaker cables,rechargeable Bluetooth RotoDial remote with charge cable,telescopic aerial,aerial spanner,mains power lead,user guide
